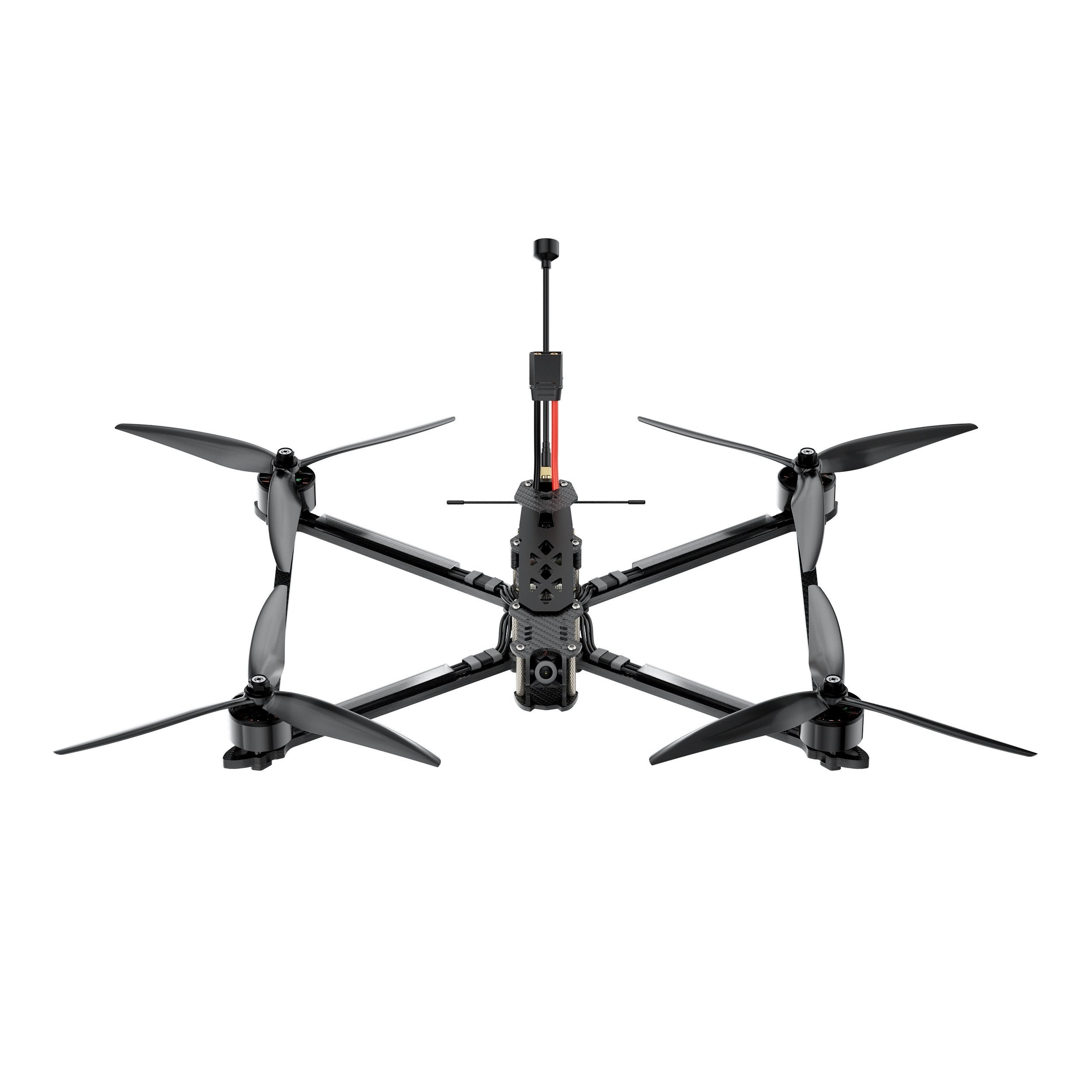

The 10-inch model of the MARK4 series is officially released. The Model adopts stiffener bars on two sides to improve stability during flight, while inheriting the design conception of the traditional model shape. The engine is upgraded to GEPRC EM3115-900KV with GEP-BL60A-4IN1 ESC, which has stronger power and better load capacity.
Feature
- A sufficient VTX accomplishes long-range flight.
- Equipped with EM3115 motor which ensures payload capability and flexibility in one go.
- Adopting BLS 60A ESC and F405 FC ensures stability and reliability.
- The horizontal stiffener bar reduces the instability.
- Supporting the maximum battery capacity of 8000mAh.
- The maximum payload is up to 3kg.
Specification
- Model: MARK4 LR10 FPV
- Frame: GEP-MARK4-10
- Wheelbase: 429mm
- Top plate thickness：2mm
- Bottom plate thickness：3mm
- Side plate thickness：2.5mm
- Arm thickness：7mm
- Mid plate thickness：3mm
- Stiffener bar thickness：3mm
- FC: GEPRC F405 V2
- ESC： GEP-BL60A-4IN1
- MCU： STM32F405RGT6
- Gyroscope： ICM-42688-P
- VTX:RAD VTX 5.8G 2.5W
- Camera: Caddx H1
- Antenna: 5.8G RHCP SMA Antenna
- Motor: EM3115 900KV
- Propellers: Gemfam 1050-3
- Maximum payload：3KG
- Weight：968±10g
Includes
- 1x MARK4 LR10 FPV Drone
- 2x GEMFAN 1050-3(1R/1L)
- 1x Camera anti-slip pad
- 1x Reserved screw pack
- 1x L-shaped screwdriver(1.5mm)
- 1x L-shaped screwdriver(2.0mm)
- 1x M8 wrench
- 2x Anti-slip rubber strips zinc alloy buckle-20*250mm
- 2x Anti-slip rubber strips zinc alloy buckle-20*300mm
- 1x GEPRC frame kits-shock absorber pad( 4 in one set) V2 version
- 1x VTX Antenna
